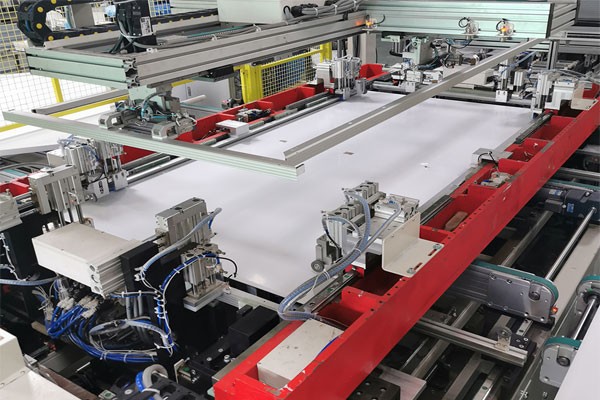

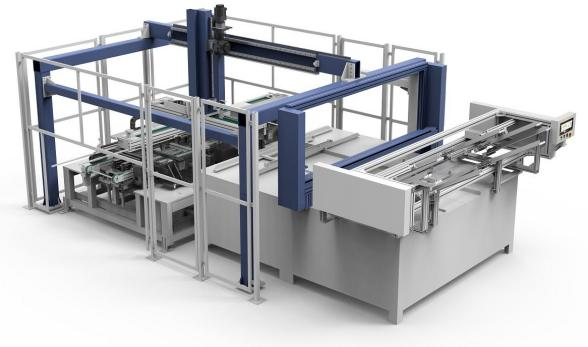

Solar Framing Gluing System|Radiant Pv Solar

Solar Framing Gluing System|Radiant Pv Solar

1.Applicable module size:1640-2400*992-1400mm;

2.Change over time:less than 2hours;

3.Framing:angle joint ＜0.3mm,A side height error:＜0.3mm;C side height error:＜0.5mm;

4.Multi-setting for framing to make sure least error during framing and keep pressure of framing,accurate position and centering frame;

5.Accuracy: Long and shorter:±1mm,diagonal≤1.5mm;

6.Acceptance rate of auto glue spilling:≥98%;

7.No glue spilling on front side,no empty glue between frame and glass,the depth of gap by 0.2mm ruler is ≤4mm;

8.Beat is ≤20s;

9.With safety protection;
